Kubuntu 15.04 小白如何自己编译一个debian-server系统

点滴 admin 4年前 (2015-06-22) 520次浏览 已收录 1个评论 扫描二维码

     本人拿的是一块CT,其他板子也可同理按照此方法编译。 PC主机:  ubuntu 12.04 64位。  首先要准备一张卡和读卡器。该环境编译出来都是卡系统。
本帖子是参照:   http://pan.baidu.com/s/1hquyzB2# … c%252Fdebian-server     A10%26A20 Linux卡固件SDK使用说明 .pdf

1  搭建环境

安装各种包
$sudo apt-get update
$sudo apt-get upgrade
$sudo apt-get install ia32-libs
$sudo apt-get install ncurses-dev
$sudo apt-get install build-essential git u-boot-tools
$sudo apt-get install texinfo texlive ccache zlib1g-dev gawk bison flex gettext uuid-dev
$sudo apt-get install build-essential u-boot-tools uboot-mkimage
$sudo apt-get install binutils-arm-linux-gnueabihf gcc-arm-linux-gnueabi
$sudo apt-get install gcc-arm-linux-gnueabihf cpp-arm-linux-gnueabihf
$ sudo apt-get install libusb-1.0-0 libusb-1.0-0-dev
$sudo apt-get install git wget fakeroot kernel-package zlib1g-dev libncurses5-dev

由于15.04有一些库不支持,需要安装替代的库,请注意查看错误。

$sudo apt-get install ia32-libs

改成

$sudo apt-get install lib32z1 lib32ncurses5

另外

$sudo apt-get install build-essential u-boot-tools uboot-mkimage

其中 uboot-mkimage 无法安装

安装fex2bin/bin2fex 工具
$ git clone https://github.com/cubieboard/sunxi-tools
$ cd sunxi-tools
$ make
$ sudo cp fex2bin bin2fex /usr/bin

2  获取源码

$ mkdir linux-sdk-card
$ cd linux-sdk-card
$ git clone https://github.com/cubieboard/linux-sdk-kernel-source.git (内核)
$ git clone https://github.com/cubieboard/linux-sdk-card-tools.git      (编译脚本)
$ git clone https://github.com/cubieboard/linux-sdk-card-products.git    (系统配置如:sys_config.fex,  kernel_defconfig)
重命名一下:
$ mv linux-sdk-kernel-source linux-sunxi
$ mv linux-sdk-card-tools tools
$ mv linux-sdk-card-products products
新建一个目录
$ mkdir  binaries
接下来下载文件系统和uboot文件, 去官方网盘下载:  http://pan.baidu.com/s/1i3nALZf
点击 “Linux-sdk文件系统和U-boot”
点击 “U-boot Bin” :  下载 u-boot-a10.tar.gz  u-boot-a20.tar.gz  , 解压到下我们新建的binaries的目录。
点击“Debian server”  下载文件系统:debian-server-rootfs-20140923.tar.gz   ,注意文件系统不用解压。直接拷贝到binaries目录。

sam@sam-System-Product-Name:/work/ linux-sdk-card/binaries$ ls
debian-server-rootfs-20140923.tar.gz  u-boot-a10  u-boot-a20

3. 接下来通过读卡器把卡插到电脑上。
$ sudo umount /media/*

4  编译系统。只要三条命令。

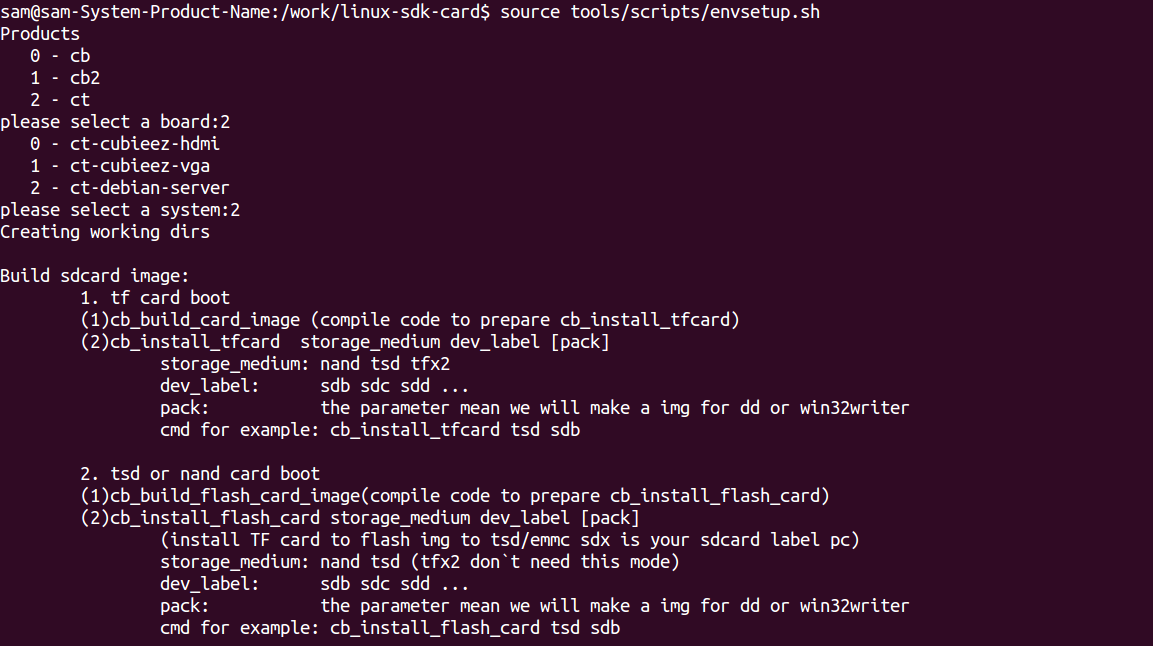

$ source tools/scripts/envsetup.sh   (根据弹出的信息分别选择  “2 ”   “2 ” )
Kubuntu 15.04 小白如何自己编译一个debian-server系统
$cb_build_card_image   (编译内核和驱动)
$cb_install_tfcard nand sdb     (注意:  sdb是你卡对应的节点,应该通过fdisk -l看清楚。  nand指的是板型: 有三种板型: TSD ,双卡板,nand板。 大部分爱好者估计都是nand板)

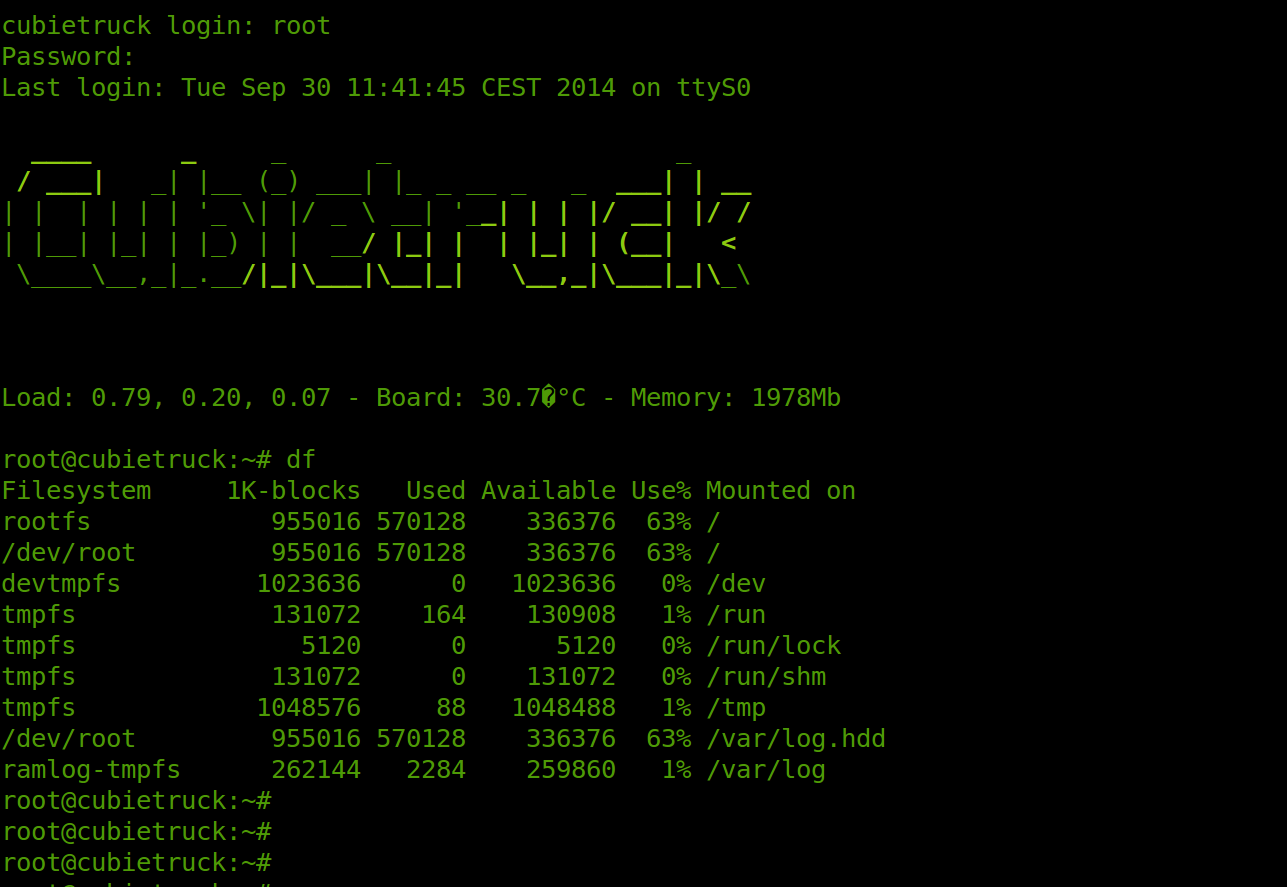

5 编译完之后把卡插入板子。开启系统。

Kubuntu 15.04 小白如何自己编译一个debian-server系统

6  该环境还支持:
1 编译最后一步时候 , 加个pack.    cb_install_tfcard  nand  sdb pack.  会生成一个卡固件.

2 支持编译卡量产系统及其固件。就是说能自动把系统导入到nand存储介质里面。

http://cubie.cc/forum.php?mod=viewthread&tid=3815

U-Boot SPL 2013.10-rc2-01379-g8a4621c-dirty (Nov 02 2013 – 16:32:19)
Board: Cubietruck
DRAM: -2048 MiB
CPU: 960000000Hz, AXI/AHB/APB: 3/2/2
spl: not an uImage at 1600

U-Boot 2013.10-rc2-01379-g8a4621c-dirty (Nov 02 2013 – 16:32:19) Allwinner Technology

CPU:   Allwinner A20 (SUN7I)
Board: Cubietruck
I2C:   ready
DRAM:  2 GiB
MMC:   SUNXI SD/MMC: 0
*** Warning – bad CRC, using default environment

In:    serial
Out:   serial
Err:   serial
Net:   emac
Hit any key to stop autoboot:  0
** Unrecognized filesystem type **
** File not found boot/uEnv.txt **
** File not found uEnv.txt **
** File not found /script.bin **
** Unrecognized filesystem type **
** File not found /script.bin **

目前还在重新编译

重新编译

cb_build_card_image
Start Building linux
“/home/leyiwo/sunxi-tools/linux-sdk-card/products/ct/ct-debian-server/kernel_defconfig”
-> “/home/leyiwo/sunxi-tools/linux-sdk-card/linux-sunxi/arch/arm/configs/kernel_defconfi
g”
make: Entering directory ’/home/leyiwo/sunxi-tools/linux-sdk-card/linux-sunxi’
 GEN     /home/leyiwo/sunxi-tools/linux-sdk-card/build/ct/ct-debian-server/linux/Makefi
le
drivers/net/wireless/bcmdhd/Kconfig:44:warning: defaults for choice values not supported
#
# configuration written to .config
#
make: Leaving directory ’/home/leyiwo/sunxi-tools/linux-sdk-card/linux-sunxi’
“/home/leyiwo/sunxi-tools/linux-sdk-card/products/ct/ct-debian-server/rootfs.cpio.gz” ->
“/home/leyiwo/sunxi-tools/linux-sdk-card/build/ct/ct-debian-server/linux/rootfs.cpio.gz

make: Entering directory ’/home/leyiwo/sunxi-tools/linux-sdk-card/linux-sunxi’
 GEN     /home/leyiwo/sunxi-tools/linux-sdk-card/build/ct/ct-debian-server/linux/Makefi
le
scripts/kconfig/conf –silentoldconfig Kconfig
drivers/net/wireless/bcmdhd/Kconfig:44:warning: defaults for choice values not supported
 GEN     /home/leyiwo/sunxi-tools/linux-sdk-card/build/ct/ct-debian-server/linux/Makefi
le
 CHK     include/linux/version.h
 Using /home/leyiwo/sunxi-tools/linux-sdk-card/linux-sunxi as source for kernel
 CHK     include/generated/utsrelease.h
make[2]: ’include/generated/mach-types.h’ is up to date.
 CALL    /home/leyiwo/sunxi-tools/linux-sdk-card/linux-sunxi/scripts/checksyscalls.sh
 CHK     include/generated/compile.h
 GZIP    kernel/config_data.gz
 CHK     kernel/config_data.h
 CC [M]  drivers/gpu/mali/ump/../mali/linux/mali_osk_atomics.o
 CC [M]  drivers/gpu/mali/ump/../mali/linux/mali_osk_locks.o
 CC [M]  drivers/gpu/mali/ump/../mali/linux/mali_osk_memory.o
 CC [M]  drivers/gpu/mali/ump/../mali/linux/mali_osk_math.o
 CC [M]  drivers/gpu/mali/ump/../mali/linux/mali_osk_misc.o
 LD [M]  drivers/gpu/mali/ump/ump.o
 Kernel: arch/arm/boot/Image is ready
 Building modules, stage 2.
 LD      arch/arm/boot/compressed/vmlinux
 OBJCOPY arch/arm/boot/zImage
 Kernel: arch/arm/boot/zImage is ready
 UIMAGE  arch/arm/boot/uImage
Image Name:   Linux-3.4.79
Created:      Mon Jun 22 13:03:14 2015
Image Type:   ARM Linux Kernel Image (uncompressed)
Data Size:    4939008 Bytes = 4823.25 kB = 4.71 MB
Load Address: 40008000
Entry Point:  40008000
 Image arch/arm/boot/uImage is ready
 MODPOST 814 modules
WARNING: modpost: Found 2 section mismatch(es).
To see full details build your kernel with:
’make CONFIG_DEBUG_SECTION_MISMATCH=y’
 CC      drivers/gpu/mali/mali/mali.mod.o
 CC      drivers/gpu/mali/ump/ump.mod.o
 LD [M]  drivers/gpu/mali/mali/mali.ko
 LD [M]  drivers/gpu/mali/ump/ump.ko
make: Leaving directory ’/home/leyiwo/sunxi-tools/linux-sdk-card/linux-sunxi’
Build linux successfully
mkdir: 已创建目录 “/home/leyiwo/sunxi-tools/linux-sdk-card/output/ct/ct-debian-server/ca
rd0-part1″
mkdir: 已创建目录 “/home/leyiwo/sunxi-tools/linux-sdk-card/output/ct/ct-debian-server/ca
rd0-part2″
make: Entering directory ’/home/leyiwo/sunxi-tools/linux-sdk-card/linux-sunxi’
 INSTALL crypto/af_alg.ko
 INSTALL crypto/algif_hash.ko
 INSTALL crypto/algif_skcipher.ko
 INSTALL crypto/ansi_cprng.ko
 INSTALL crypto/anubis.ko
 INSTALL crypto/blowfish_generic.ko
 INSTALL crypto/camellia_generic.ko
 INSTALL crypto/blowfish_common.ko
 INSTALL crypto/cast5.ko
 INSTALL crypto/cast6.ko
 INSTALL crypto/ccm.ko
 INSTALL crypto/cryptd.ko
 INSTALL crypto/ctr.ko
 INSTALL crypto/crypto_user.ko
 INSTALL crypto/cts.ko
 INSTALL crypto/fcrypt.ko
 INSTALL crypto/ghash-generic.ko
 INSTALL crypto/gcm.ko
 INSTALL crypto/khazad.ko
 INSTALL crypto/lrw.ko
 INSTALL crypto/michael_mic.ko
 INSTALL crypto/rmd128.ko
 INSTALL crypto/pcbc.ko
 INSTALL crypto/rmd256.ko
 INSTALL crypto/rmd320.ko
 INSTALL crypto/rmd160.ko
 INSTALL crypto/salsa20_generic.ko
 INSTALL crypto/seed.ko
 INSTALL crypto/serpent_generic.ko
 INSTALL crypto/sha256_generic.ko
 INSTALL crypto/sha512_generic.ko
 INSTALL crypto/tea.ko
 INSTALL crypto/tgr192.ko
 INSTALL crypto/vmac.ko
 INSTALL crypto/wp512.ko
 INSTALL crypto/xts.ko
 INSTALL crypto/xcbc.ko
 INSTALL drivers/block/aoe/aoe.ko
 INSTALL drivers/block/drbd/drbd.ko
 INSTALL drivers/block/nbd.ko
 INSTALL drivers/block/pktcdvd.ko
 INSTALL drivers/bluetooth/ath3k.ko
 INSTALL drivers/bluetooth/bcm203x.ko
 INSTALL drivers/bluetooth/bfusb.ko
 INSTALL drivers/bluetooth/bpa10x.ko
 INSTALL drivers/bluetooth/btmrvl.ko
 INSTALL drivers/bluetooth/btsdio.ko
 INSTALL drivers/bluetooth/btmrvl_sdio.ko
 INSTALL drivers/bluetooth/btusb.ko
 INSTALL drivers/bluetooth/btwilink.ko
 INSTALL drivers/cpufreq/cpufreq_userspace.ko
 INSTALL drivers/bluetooth/hci_uart.ko
 INSTALL drivers/crypto/sunxi-ss.ko
 INSTALL drivers/gpu/drm/drm.ko
 INSTALL drivers/gpu/drm/drm_kms_helper.ko
 INSTALL drivers/gpu/drm/drm_usb.ko
 INSTALL drivers/gpu/drm/i2c/ch7006.ko
 INSTALL drivers/gpu/drm/i2c/sil164.ko
 INSTALL drivers/gpu/drm/mali/mali_drm.ko
 INSTALL drivers/gpu/mali/mali/mali.ko
 INSTALL drivers/gpu/drm/udl/udl.ko
 INSTALL drivers/input/joystick/xpad.ko
 INSTALL drivers/i2c/algos/i2c-algo-bit.ko
 INSTALL drivers/gpu/mali/ump/ump.ko
 INSTALL drivers/input/serio/sunxi-ps2.ko
 INSTALL drivers/leds/ledtrig-gpio.ko
 INSTALL drivers/media/common/tuners/mt2060.ko
 INSTALL drivers/media/common/tuners/mc44s803.ko
 INSTALL drivers/media/common/tuners/max2165.ko
 INSTALL drivers/media/common/tuners/mt2063.ko
 INSTALL drivers/media/common/tuners/mt20xx.ko
 INSTALL drivers/media/common/tuners/mt2266.ko
 INSTALL drivers/media/common/tuners/mxl5005s.ko
 INSTALL drivers/media/common/tuners/mxl5007t.ko
 INSTALL drivers/media/common/tuners/qt1010.ko
 INSTALL drivers/media/common/tuners/tda18212.ko
 INSTALL drivers/media/common/tuners/tda18218.ko
 INSTALL drivers/media/common/tuners/tda18271.ko
 INSTALL drivers/media/common/tuners/tda827x.ko
 INSTALL drivers/media/common/tuners/tea5761.ko
 INSTALL drivers/media/common/tuners/tda8290.ko
 INSTALL drivers/media/common/tuners/tda9887.ko
 INSTALL drivers/media/common/tuners/tea5767.ko
 INSTALL drivers/media/common/tuners/tuner-simple.ko
 INSTALL drivers/media/common/tuners/tuner-xc2028.ko
 INSTALL drivers/media/common/tuners/tuner-types.ko
 INSTALL drivers/media/common/tuners/xc4000.ko
 INSTALL drivers/media/dvb/dvb-core/dvb-core.ko
 INSTALL drivers/media/common/tuners/xc5000.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-a800.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-af9005-remote.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-af9005.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-af9015.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-anysee.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-az6027.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-az6007.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-au6610.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-ce6230.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-cinergyT2.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-cxusb.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-dibusb-common.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-dib0700.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-dibusb-mb.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-dibusb-mc.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-dtt200u.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-digitv.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-dtv5100.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-dw2102.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-ec168.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-friio.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-gl861.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-gp8psk.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-it913x.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-lmedm04.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-m920x.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-mxl111sf.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-nova-t-usb2.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-opera.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-pctv452e.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-rtl28xxu.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-technisat-usb2.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-ttusb2.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-umt-010.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-vp702x.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb-vp7045.ko
 INSTALL drivers/media/dvb/dvb-usb/dvb-usb.ko
 INSTALL drivers/media/dvb/dvb-usb/mxl111sf-tuner.ko
 INSTALL drivers/media/dvb/dvb-usb/mxl111sf-demod.ko
 INSTALL drivers/media/dvb/frontends/a8293.ko
 INSTALL drivers/media/dvb/frontends/af9013.ko
 INSTALL drivers/media/dvb/frontends/atbm8830.ko
 INSTALL drivers/media/dvb/frontends/cx24116.ko
 INSTALL drivers/media/dvb/frontends/cx22702.ko
 INSTALL drivers/media/dvb/frontends/cxd2820r.ko
 INSTALL drivers/media/dvb/frontends/dib0070.ko
 INSTALL drivers/media/dvb/frontends/dib3000mc.ko
 INSTALL drivers/media/dvb/frontends/dib0090.ko
 INSTALL drivers/media/dvb/frontends/dib3000mb.ko
 INSTALL drivers/media/dvb/frontends/dib7000p.ko
 INSTALL drivers/media/dvb/frontends/dib7000m.ko
 INSTALL drivers/media/dvb/frontends/dib8000.ko
 INSTALL drivers/media/dvb/frontends/dibx000_common.ko
 INSTALL drivers/media/dvb/frontends/drxk.ko
 INSTALL drivers/media/dvb/frontends/drxd.ko
 INSTALL drivers/media/dvb/frontends/ds3000.ko
 INSTALL drivers/media/dvb/frontends/dvb-pll.ko
 INSTALL drivers/media/dvb/frontends/ec100.ko
 INSTALL drivers/media/dvb/frontends/isl6423.ko
 INSTALL drivers/media/dvb/frontends/it913x-fe.ko
 INSTALL drivers/media/dvb/frontends/lgdt3305.ko
 INSTALL drivers/media/dvb/frontends/ix2505v.ko
 INSTALL drivers/media/dvb/frontends/lgdt330x.ko
 INSTALL drivers/media/dvb/frontends/lnbp21.ko
 INSTALL drivers/media/dvb/frontends/lgs8gxx.ko
 INSTALL drivers/media/dvb/frontends/lnbp22.ko
 INSTALL drivers/media/dvb/frontends/m88rs2000.ko
 INSTALL drivers/media/dvb/frontends/mb86a20s.ko
 INSTALL drivers/media/dvb/frontends/mt312.ko
 INSTALL drivers/media/dvb/frontends/mt352.ko
 INSTALL drivers/media/dvb/frontends/nxt6000.ko
 INSTALL drivers/media/dvb/frontends/rtl2830.ko
 INSTALL drivers/media/dvb/frontends/s5h1409.ko
 INSTALL drivers/media/dvb/frontends/s5h1411.ko
 INSTALL drivers/media/dvb/frontends/si21xx.ko
 INSTALL drivers/media/dvb/frontends/s921.ko
 INSTALL drivers/media/dvb/frontends/stb0899.ko
 INSTALL drivers/media/dvb/frontends/stb6000.ko
 INSTALL drivers/media/dvb/frontends/stb6100.ko
 INSTALL drivers/media/dvb/frontends/stv0299.ko
 INSTALL drivers/media/dvb/frontends/stv0288.ko
 INSTALL drivers/media/dvb/frontends/stv0900.ko
 INSTALL drivers/media/dvb/frontends/stv090x.ko
 INSTALL drivers/media/dvb/frontends/stv6110.ko
 INSTALL drivers/media/dvb/frontends/stv6110x.ko
 INSTALL drivers/media/dvb/frontends/tda10023.ko
 INSTALL drivers/media/dvb/frontends/tda10048.ko
 INSTALL drivers/media/dvb/frontends/tda1004x.ko
 INSTALL drivers/media/dvb/frontends/tda10071.ko
 INSTALL drivers/media/dvb/frontends/tda10086.ko
 INSTALL drivers/media/dvb/frontends/tda18271c2dd.ko
 INSTALL drivers/media/dvb/frontends/tda826x.ko
 INSTALL drivers/media/dvb/frontends/zl10039.ko
 INSTALL drivers/media/dvb/frontends/zl10353.ko
 INSTALL drivers/media/rc/ati_remote.ko
 INSTALL drivers/media/dvb/ttpci/ttpci-eeprom.ko
 INSTALL drivers/media/rc/imon.ko
 INSTALL drivers/media/rc/ir-jvc-decoder.ko
 INSTALL drivers/media/rc/ir-mce_kbd-decoder.ko
 INSTALL drivers/media/rc/ir-lirc-codec.ko
 INSTALL drivers/media/rc/ir-nec-decoder.ko
 INSTALL drivers/media/rc/ir-rc5-decoder.ko
 INSTALL drivers/media/rc/ir-rc5-sz-decoder.ko
 INSTALL drivers/media/rc/ir-rc6-decoder.ko
 INSTALL drivers/media/rc/ir-sanyo-decoder.ko
 INSTALL drivers/media/rc/ir-sony-decoder.ko
 INSTALL drivers/media/rc/keymaps/rc-alink-dtu-m.ko
 INSTALL drivers/media/rc/keymaps/rc-adstech-dvb-t-pci.ko
 INSTALL drivers/media/rc/keymaps/rc-anysee.ko
 INSTALL drivers/media/rc/keymaps/rc-asus-pc39.ko
 INSTALL drivers/media/rc/keymaps/rc-apac-viewcomp.ko
 INSTALL drivers/media/rc/keymaps/rc-ati-tv-wonder-hd-600.ko
 INSTALL drivers/media/rc/keymaps/rc-ati-x10.ko
 INSTALL drivers/media/rc/keymaps/rc-avermedia-cardbus.ko
 INSTALL drivers/media/rc/keymaps/rc-avermedia-dvbt.ko
 INSTALL drivers/media/rc/keymaps/rc-avermedia-a16d.ko
 INSTALL drivers/media/rc/keymaps/rc-avermedia-m135a.ko
 INSTALL drivers/media/rc/keymaps/rc-avermedia-m733a-rm-k6.ko
 INSTALL drivers/media/rc/keymaps/rc-avermedia-rm-ks.ko
 INSTALL drivers/media/rc/keymaps/rc-avermedia.ko
 INSTALL drivers/media/rc/keymaps/rc-avertv-303.ko
 INSTALL drivers/media/rc/keymaps/rc-azurewave-ad-tu700.ko
 INSTALL drivers/media/rc/keymaps/rc-behold.ko
 INSTALL drivers/media/rc/keymaps/rc-budget-ci-old.ko
 INSTALL drivers/media/rc/keymaps/rc-behold-columbus.ko
 INSTALL drivers/media/rc/keymaps/rc-cinergy-1400.ko
 INSTALL drivers/media/rc/keymaps/rc-cinergy.ko
 INSTALL drivers/media/rc/keymaps/rc-dib0700-nec.ko
 INSTALL drivers/media/rc/keymaps/rc-digitalnow-tinytwin.ko
 INSTALL drivers/media/rc/keymaps/rc-dib0700-rc5.ko
 INSTALL drivers/media/rc/keymaps/rc-digittrade.ko
 INSTALL drivers/media/rc/keymaps/rc-dm1105-nec.ko
 INSTALL drivers/media/rc/keymaps/rc-dntv-live-dvb-t.ko
 INSTALL drivers/media/rc/keymaps/rc-dntv-live-dvbt-pro.ko
 INSTALL drivers/media/rc/keymaps/rc-em-terratec.ko
 INSTALL drivers/media/rc/keymaps/rc-encore-enltv-fm53.ko
 INSTALL drivers/media/rc/keymaps/rc-encore-enltv2.ko
 INSTALL drivers/media/rc/keymaps/rc-encore-enltv.ko
 INSTALL drivers/media/rc/keymaps/rc-evga-indtube.ko
 INSTALL drivers/media/rc/keymaps/rc-flydvb.ko
 INSTALL drivers/media/rc/keymaps/rc-eztv.ko
 INSTALL drivers/media/rc/keymaps/rc-fusionhdtv-mce.ko
 INSTALL drivers/media/rc/keymaps/rc-flyvideo.ko
 INSTALL drivers/media/rc/keymaps/rc-gadmei-rm008z.ko
 INSTALL drivers/media/rc/keymaps/rc-genius-tvgo-a11mce.ko
 INSTALL drivers/media/rc/keymaps/rc-gotview7135.ko
 INSTALL drivers/media/rc/keymaps/rc-imon-mce.ko
 INSTALL drivers/media/rc/keymaps/rc-hauppauge.ko
 INSTALL drivers/media/rc/keymaps/rc-imon-pad.ko
 INSTALL drivers/media/rc/keymaps/rc-iodata-bctv7e.ko
 INSTALL drivers/media/rc/keymaps/rc-it913x-v1.ko
 INSTALL drivers/media/rc/keymaps/rc-it913x-v2.ko
 INSTALL drivers/media/rc/keymaps/rc-kaiomy.ko
 INSTALL drivers/media/rc/keymaps/rc-kworld-315u.ko
 INSTALL drivers/media/rc/keymaps/rc-kworld-pc150u.ko
 INSTALL drivers/media/rc/keymaps/rc-kworld-plus-tv-analog.ko
 INSTALL drivers/media/rc/keymaps/rc-leadtek-y04g0051.ko
 INSTALL drivers/media/rc/keymaps/rc-lirc.ko
 INSTALL drivers/media/rc/keymaps/rc-lme2510.ko
 INSTALL drivers/media/rc/keymaps/rc-manli.ko
 INSTALL drivers/media/rc/keymaps/rc-medion-x10.ko
 INSTALL drivers/media/rc/keymaps/rc-msi-digivox-ii.ko
 INSTALL drivers/media/rc/keymaps/rc-msi-digivox-iii.ko
 INSTALL drivers/media/rc/keymaps/rc-msi-tvanywhere-plus.ko
 INSTALL drivers/media/rc/keymaps/rc-msi-tvanywhere.ko
 INSTALL drivers/media/rc/keymaps/rc-nebula.ko
 INSTALL drivers/media/rc/keymaps/rc-nec-terratec-cinergy-xs.ko
 INSTALL drivers/media/rc/keymaps/rc-norwood.ko
 INSTALL drivers/media/rc/keymaps/rc-pctv-sedna.ko
 INSTALL drivers/media/rc/keymaps/rc-npgtech.ko
 INSTALL drivers/media/rc/keymaps/rc-pinnacle-color.ko
 INSTALL drivers/media/rc/keymaps/rc-pinnacle-grey.ko
 INSTALL drivers/media/rc/keymaps/rc-pixelview-002t.ko
 INSTALL drivers/media/rc/keymaps/rc-pinnacle-pctv-hd.ko
 INSTALL drivers/media/rc/keymaps/rc-pixelview-mk12.ko
 INSTALL drivers/media/rc/keymaps/rc-pixelview-new.ko
 INSTALL drivers/media/rc/keymaps/rc-pixelview.ko
 INSTALL drivers/media/rc/keymaps/rc-proteus-2309.ko
 INSTALL drivers/media/rc/keymaps/rc-powercolor-real-angel.ko
 INSTALL drivers/media/rc/keymaps/rc-purpletv.ko
 INSTALL drivers/media/rc/keymaps/rc-pv951.ko
 INSTALL drivers/media/rc/keymaps/rc-rc6-mce.ko
 INSTALL drivers/media/rc/keymaps/rc-real-audio-220-32-keys.ko
 INSTALL drivers/media/rc/keymaps/rc-snapstream-firefly.ko
 INSTALL drivers/media/rc/keymaps/rc-tbs-nec.ko
 INSTALL drivers/media/rc/keymaps/rc-streamzap.ko
 INSTALL drivers/media/rc/keymaps/rc-technisat-usb2.ko
 INSTALL drivers/media/rc/keymaps/rc-terratec-cinergy-xs.ko
 INSTALL drivers/media/rc/keymaps/rc-terratec-slim-2.ko
 INSTALL drivers/media/rc/keymaps/rc-terratec-slim.ko
 INSTALL drivers/media/rc/keymaps/rc-tevii-nec.ko
 INSTALL drivers/media/rc/keymaps/rc-tivo.ko
 INSTALL drivers/media/rc/keymaps/rc-total-media-in-hand.ko
 INSTALL drivers/media/rc/keymaps/rc-tt-1500.ko
 INSTALL drivers/media/rc/keymaps/rc-trekstor.ko
 INSTALL drivers/media/rc/keymaps/rc-twinhan1027.ko
 INSTALL drivers/media/rc/keymaps/rc-videomate-s350.ko
 INSTALL drivers/media/rc/keymaps/rc-videomate-m1f.ko
 INSTALL drivers/media/rc/keymaps/rc-winfast-usbii-deluxe.ko
 INSTALL drivers/media/rc/keymaps/rc-videomate-tv-pvr.ko
 INSTALL drivers/media/rc/keymaps/rc-winfast.ko
 INSTALL drivers/media/rc/lirc_dev.ko
 INSTALL drivers/media/rc/mceusb.ko
 INSTALL drivers/media/rc/rc-core.ko
 INSTALL drivers/media/rc/redrat3.ko
 INSTALL drivers/media/rc/streamzap.ko
 INSTALL drivers/media/video/cpia2/cpia2.ko
 INSTALL drivers/media/video/cs53l32a.ko
 INSTALL drivers/media/video/cx231xx/cx231xx-dvb.ko
 INSTALL drivers/media/video/cx231xx/cx231xx-alsa.ko
 INSTALL drivers/media/video/cx231xx/cx231xx.ko
 INSTALL drivers/media/video/cx2341x.ko
 INSTALL drivers/media/video/cx25840/cx25840.ko
 INSTALL drivers/media/video/em28xx/em28xx-dvb.ko
 INSTALL drivers/media/video/em28xx/em28xx-alsa.ko
 INSTALL drivers/media/video/em28xx/em28xx.ko
 INSTALL drivers/media/video/et61x251/et61x251.ko
 INSTALL drivers/media/video/gspca/gl860/gspca_gl860.ko
 INSTALL drivers/media/video/gspca/gspca_benq.ko
 INSTALL drivers/media/video/gspca/gspca_conex.ko
 INSTALL drivers/media/video/gspca/gspca_cpia1.ko
 INSTALL drivers/media/video/gspca/gspca_etoms.ko
 INSTALL drivers/media/video/gspca/gspca_jeilinj.ko
 INSTALL drivers/media/video/gspca/gspca_jl2005bcd.ko
 INSTALL drivers/media/video/gspca/gspca_finepix.ko
 INSTALL drivers/media/video/gspca/gspca_kinect.ko
 INSTALL drivers/media/video/gspca/gspca_konica.ko
 INSTALL drivers/media/video/gspca/gspca_main.ko
 INSTALL drivers/media/video/gspca/gspca_mars.ko
 INSTALL drivers/media/video/gspca/gspca_mr97310a.ko
 INSTALL drivers/media/video/gspca/gspca_nw80x.ko
 INSTALL drivers/media/video/gspca/gspca_ov519.ko
 INSTALL drivers/media/video/gspca/gspca_ov534.ko
 INSTALL drivers/media/video/gspca/gspca_ov534_9.ko
 INSTALL drivers/media/video/gspca/gspca_pac207.ko
 INSTALL drivers/media/video/gspca/gspca_pac7302.ko
 INSTALL drivers/media/video/gspca/gspca_pac7311.ko
 INSTALL drivers/media/video/gspca/gspca_se401.ko
 INSTALL drivers/media/video/gspca/gspca_sn9c2028.ko
 INSTALL drivers/media/video/gspca/gspca_sn9c20x.ko
 INSTALL drivers/media/video/gspca/gspca_sonixb.ko
 INSTALL drivers/media/video/gspca/gspca_spca1528.ko
 INSTALL drivers/media/video/gspca/gspca_sonixj.ko
 INSTALL drivers/media/video/gspca/gspca_spca500.ko
 INSTALL drivers/media/video/gspca/gspca_spca501.ko
 INSTALL drivers/media/video/gspca/gspca_spca505.ko
 INSTALL drivers/media/video/gspca/gspca_spca506.ko
 INSTALL drivers/media/video/gspca/gspca_spca508.ko
 INSTALL drivers/media/video/gspca/gspca_spca561.ko
 INSTALL drivers/media/video/gspca/gspca_sq905c.ko
 INSTALL drivers/media/video/gspca/gspca_sq905.ko
 INSTALL drivers/media/video/gspca/gspca_sq930x.ko
 INSTALL drivers/media/video/gspca/gspca_stk014.ko
 INSTALL drivers/media/video/gspca/gspca_t613.ko
 INSTALL drivers/media/video/gspca/gspca_stv0680.ko
 INSTALL drivers/media/video/gspca/gspca_sunplus.ko
 INSTALL drivers/media/video/gspca/gspca_topro.ko
 INSTALL drivers/media/video/gspca/gspca_tv8532.ko
 INSTALL drivers/media/video/gspca/gspca_vicam.ko
 INSTALL drivers/media/video/gspca/gspca_vc032x.ko
 INSTALL drivers/media/video/gspca/gspca_xirlink_cit.ko
 INSTALL drivers/media/video/gspca/gspca_zc3xx.ko
 INSTALL drivers/media/video/gspca/m5602/gspca_m5602.ko
 INSTALL drivers/media/video/gspca/stv06xx/gspca_stv06xx.ko
 INSTALL drivers/media/video/hdpvr/hdpvr.ko
 INSTALL drivers/media/video/msp3400.ko
 INSTALL drivers/media/video/ir-kbd-i2c.ko
 INSTALL drivers/media/video/mt9v011.ko
 INSTALL drivers/media/video/pwc/pwc.ko
 INSTALL drivers/media/video/pvrusb2/pvrusb2.ko
 INSTALL drivers/media/video/s2255drv.ko
 INSTALL drivers/media/video/sn9c102/sn9c102.ko
 INSTALL drivers/media/video/saa7115.ko
 INSTALL drivers/media/video/stkwebcam.ko
 INSTALL drivers/media/video/sunxi/sunxi_cedar_mod.ko
 INSTALL drivers/media/video/tlg2300/poseidon.ko
 INSTALL drivers/media/video/tm6000/tm6000-alsa.ko
 INSTALL drivers/media/video/tm6000/tm6000-dvb.ko
 INSTALL drivers/media/video/tm6000/tm6000.ko
 INSTALL drivers/media/video/tuner.ko
 INSTALL drivers/media/video/tveeprom.ko
 INSTALL drivers/media/video/tvp5150.ko
 INSTALL drivers/media/video/usbvision/usbvision.ko
 INSTALL drivers/media/video/uvc/uvcvideo.ko
 INSTALL drivers/media/video/videobuf-core.ko
 INSTALL drivers/media/video/videobuf-dvb.ko
 INSTALL drivers/media/video/videobuf-vmalloc.ko
 INSTALL drivers/media/video/videobuf2-core.ko
 INSTALL drivers/media/video/videobuf2-memops.ko
 INSTALL drivers/media/video/videobuf2-vmalloc.ko
 INSTALL drivers/media/video/zr364xx.ko
 INSTALL drivers/mfd/mfd-core.ko
 INSTALL drivers/media/video/wm8775.ko
 INSTALL drivers/mfd/wl1273-core.ko
 INSTALL drivers/misc/eeprom/at24.ko
 INSTALL drivers/misc/eeprom/at25.ko
 INSTALL drivers/misc/eeprom/eeprom_93cx6.ko
 INSTALL drivers/misc/pwm-sunxi.ko
 INSTALL drivers/misc/eeprom/eeprom_93xx46.ko
 INSTALL drivers/misc/sunxi-dbgreg.ko
 INSTALL drivers/misc/ti-st/st_drv.ko
 INSTALL drivers/mmc/card/sdio_uart.ko
 INSTALL drivers/mmc/host/ushc.ko
 INSTALL drivers/net/ethernet/allwinner/gmac/sunxi_gmac.ko
 INSTALL drivers/net/irda/irda-usb.ko
 INSTALL drivers/net/irda/irtty-sir.ko
 INSTALL drivers/net/irda/kingsun-sir.ko
 INSTALL drivers/net/irda/ksdazzle-sir.ko
 INSTALL drivers/net/irda/ks959-sir.ko
 INSTALL drivers/net/irda/mcs7780.ko
 INSTALL drivers/net/irda/sir-dev.ko
 INSTALL drivers/net/irda/stir4200.ko
 INSTALL drivers/net/mii.ko
 INSTALL drivers/net/ppp/pptp.ko
 INSTALL drivers/net/tun.ko
 INSTALL drivers/net/usb/asix.ko
 INSTALL drivers/net/usb/catc.ko
 INSTALL drivers/net/usb/cdc_ether.ko
 INSTALL drivers/net/usb/cdc_eem.ko
 INSTALL drivers/net/usb/cdc_ncm.ko
 INSTALL drivers/net/usb/cdc_subset.ko
 INSTALL drivers/net/usb/cx82310_eth.ko
 INSTALL drivers/net/usb/dm9601.ko
 INSTALL drivers/net/usb/hso.ko
 INSTALL drivers/net/usb/int51x1.ko
 INSTALL drivers/net/usb/ipheth.ko
 INSTALL drivers/net/usb/kalmia.ko
 INSTALL drivers/net/usb/kaweth.ko
 INSTALL drivers/net/usb/lg-vl600.ko
 INSTALL drivers/net/usb/mcs7830.ko
 INSTALL drivers/net/usb/pegasus.ko
 INSTALL drivers/net/usb/qf9700.ko
 INSTALL drivers/net/usb/qmi_wwan.ko
 INSTALL drivers/net/usb/rndis_host.ko
 INSTALL drivers/net/usb/rtl8150.ko
 INSTALL drivers/net/usb/sierra_net.ko
 INSTALL drivers/net/usb/smsc75xx.ko
 INSTALL drivers/net/usb/smsc95xx.ko
 INSTALL drivers/net/usb/usbnet.ko
 INSTALL drivers/net/usb/zaurus.ko
 INSTALL drivers/net/wireless/ath/ath.ko
 INSTALL drivers/net/wireless/ath/ath6kl/ath6kl_core.ko
 INSTALL drivers/net/wireless/ath/ath6kl/ath6kl_sdio.ko
 INSTALL drivers/net/wireless/ath/ath6kl/ath6kl_usb.ko
 INSTALL drivers/net/wireless/ath/ath9k/ath9k_common.ko
 INSTALL drivers/net/wireless/ath/ath9k/ath9k.ko
 INSTALL drivers/net/wireless/ath/ath9k/ath9k_htc.ko
 INSTALL drivers/net/wireless/ath/ath9k/ath9k_hw.ko
 INSTALL drivers/net/wireless/ath/carl9170/carl9170.ko
 INSTALL drivers/net/wireless/bcmdhd/bcmdhd.ko
 INSTALL drivers/net/wireless/brcm80211/brcmfmac/brcmfmac.ko
 INSTALL drivers/net/wireless/brcm80211/brcmutil/brcmutil.ko
 INSTALL drivers/net/wireless/hostap/hostap.ko
 INSTALL drivers/net/wireless/rndis_wlan.ko
 INSTALL drivers/net/wireless/rtl8188eu/8188eu.ko
 INSTALL drivers/net/wireless/rtl818x/rtl8187/rtl8187.ko
 INSTALL drivers/net/wireless/rtl8192cu/8192cu.ko
 INSTALL drivers/scsi/scsi_wait_scan.ko
 INSTALL drivers/spi/spi-sun7i.ko
 INSTALL drivers/net/wireless/zd1201.ko
 INSTALL drivers/staging/media/easycap/easycap.ko
 INSTALL drivers/staging/media/as102/dvb-as102.ko
 INSTALL drivers/staging/media/lirc/lirc_igorplugusb.ko
 INSTALL drivers/staging/media/lirc/lirc_imon.ko
 INSTALL drivers/staging/media/lirc/lirc_sasem.ko
 INSTALL drivers/staging/media/lirc/lirc_ttusbir.ko
 INSTALL drivers/staging/ozwpan/ozwpan.ko
 INSTALL drivers/staging/media/lirc/lirc_zilog.ko
 INSTALL drivers/staging/rtl8712/r8712u.ko
 INSTALL drivers/staging/rts5139/rts5139.ko
 INSTALL drivers/staging/speakup/speakup_soft.ko
 INSTALL drivers/staging/speakup/speakup.ko
 INSTALL drivers/staging/usbip/usbip-core.ko
 INSTALL drivers/staging/usbip/usbip-host.ko
 INSTALL drivers/staging/usbip/vhci-hcd.ko
 INSTALL drivers/usb/class/cdc-acm.ko
 INSTALL drivers/usb/class/usblp.ko
 INSTALL drivers/usb/class/cdc-wdm.ko
 INSTALL drivers/usb/gadget/g_audio.ko
 INSTALL drivers/usb/gadget/g_acm_ms.ko
 INSTALL drivers/usb/gadget/g_dbgp.ko
 INSTALL drivers/usb/gadget/g_cdc.ko
 INSTALL drivers/usb/gadget/g_ffs.ko
 INSTALL drivers/usb/gadget/g_ether.ko
 INSTALL drivers/usb/gadget/g_multi.ko
 INSTALL drivers/usb/gadget/g_mass_storage.ko
 INSTALL drivers/usb/gadget/g_midi.ko
 INSTALL drivers/usb/gadget/g_hid.ko
 INSTALL drivers/usb/gadget/g_ncm.ko
 INSTALL drivers/usb/gadget/g_printer.ko
 INSTALL drivers/usb/gadget/g_serial.ko
 INSTALL drivers/usb/gadget/g_webcam.ko
 INSTALL drivers/usb/gadget/gadgetfs.ko
 INSTALL drivers/usb/image/mdc800.ko
 INSTALL drivers/usb/misc/appledisplay.ko
 INSTALL drivers/usb/misc/emi26.ko
 INSTALL drivers/usb/misc/emi62.ko
 INSTALL drivers/usb/misc/ftdi-elan.ko
 INSTALL drivers/usb/misc/idmouse.ko
 INSTALL drivers/usb/misc/iowarrior.ko
 INSTALL drivers/usb/misc/isight_firmware.ko
 INSTALL drivers/usb/misc/ldusb.ko
 INSTALL drivers/usb/misc/trancevibrator.ko
 INSTALL drivers/usb/misc/sisusbvga/sisusbvga.ko
 INSTALL drivers/usb/serial/aircable.ko
 INSTALL drivers/usb/serial/ark3116.ko
 INSTALL drivers/usb/serial/belkin_sa.ko
 INSTALL drivers/usb/serial/cp210x.ko
 INSTALL drivers/usb/serial/ch341.ko
 INSTALL drivers/usb/serial/cyberjack.ko
 INSTALL drivers/usb/serial/cypress_m8.ko
 INSTALL drivers/usb/serial/digi_acceleport.ko
 INSTALL drivers/usb/serial/empeg.ko
 INSTALL drivers/usb/serial/f81232.ko
 INSTALL drivers/usb/serial/ftdi_sio.ko
 INSTALL drivers/usb/serial/garmin_gps.ko
 INSTALL drivers/usb/serial/hp4x.ko
 INSTALL drivers/usb/serial/funsoft.ko
 INSTALL drivers/usb/serial/io_edgeport.ko
 INSTALL drivers/usb/serial/io_ti.ko
 INSTALL drivers/usb/serial/ipaq.ko
 INSTALL drivers/usb/serial/ipw.ko
 INSTALL drivers/usb/serial/ir-usb.ko
 INSTALL drivers/usb/serial/iuu_phoenix.ko
 INSTALL drivers/usb/serial/keyspan_pda.ko
 INSTALL drivers/usb/serial/keyspan.ko
 INSTALL drivers/usb/serial/kl5kusb105.ko
 INSTALL drivers/usb/serial/mct_u232.ko
 INSTALL drivers/usb/serial/kobil_sct.ko
 INSTALL drivers/usb/serial/metro-usb.ko
 INSTALL drivers/usb/serial/mos7720.ko
 INSTALL drivers/usb/serial/mos7840.ko
 INSTALL drivers/usb/serial/moto_modem.ko
 INSTALL drivers/usb/serial/omninet.ko
 INSTALL drivers/usb/serial/navman.ko
 INSTALL drivers/usb/serial/opticon.ko
 INSTALL drivers/usb/serial/option.ko
 INSTALL drivers/usb/serial/oti6858.ko
 INSTALL drivers/usb/serial/pl2303.ko
 INSTALL drivers/usb/serial/qcserial.ko
 INSTALL drivers/usb/serial/qcaux.ko
 INSTALL drivers/usb/serial/siemens_mpi.ko
 INSTALL drivers/usb/serial/sierra.ko
 INSTALL drivers/usb/serial/spcp8x5.ko
 INSTALL drivers/usb/serial/ssu100.ko
 INSTALL drivers/usb/serial/symbolserial.ko
 INSTALL drivers/usb/serial/ti_usb_3410_5052.ko
 INSTALL drivers/usb/serial/usb_wwan.ko
 INSTALL drivers/usb/serial/usbserial.ko
 INSTALL drivers/usb/serial/visor.ko
 INSTALL drivers/usb/serial/whiteheat.ko
 INSTALL drivers/usb/serial/vivopay-serial.ko
 INSTALL drivers/usb/storage/ums-alauda.ko
 INSTALL drivers/usb/storage/ums-datafab.ko
 INSTALL drivers/usb/storage/ums-eneub6250.ko
 INSTALL drivers/usb/storage/ums-cypress.ko
 INSTALL drivers/usb/storage/ums-freecom.ko
 INSTALL drivers/usb/storage/ums-isd200.ko
 INSTALL drivers/usb/storage/ums-jumpshot.ko
 INSTALL drivers/usb/storage/ums-karma.ko
 INSTALL drivers/usb/storage/ums-onetouch.ko
 INSTALL drivers/usb/storage/ums-sddr09.ko
 INSTALL drivers/usb/storage/ums-realtek.ko
 INSTALL drivers/usb/storage/ums-sddr55.ko
 INSTALL drivers/usb/storage/usb-storage.ko
 INSTALL drivers/usb/storage/ums-usbat.ko
 INSTALL drivers/video/backlight/backlight.ko
 INSTALL drivers/video/backlight/generic_bl.ko
 INSTALL drivers/video/backlight/lcd.ko
 INSTALL drivers/video/fb_sys_fops.ko
 INSTALL drivers/video/hdmi-cec/hdmi-cec.ko
 INSTALL drivers/video/smscufx.ko
 INSTALL drivers/video/sunxi/disp/disp_ump.ko
 INSTALL drivers/video/syscopyarea.ko
 INSTALL drivers/video/sysfillrect.ko
 INSTALL drivers/video/sysimgblt.ko
 INSTALL drivers/video/udlfb.ko
 INSTALL drivers/w1/wire.ko
 INSTALL fs/exportfs/exportfs.ko
 INSTALL fs/nfsd/nfsd.ko
 INSTALL fs/squashfs/squashfs.ko
 INSTALL lib/crc7.ko
 INSTALL lib/lru_cache.ko
 INSTALL lib/ts_bm.ko
 INSTALL lib/ts_fsm.ko
 INSTALL lib/ts_kmp.ko
 INSTALL net/802/garp.ko
 INSTALL net/802/psnap.ko
 INSTALL net/802/stp.ko
 INSTALL net/802/p8022.ko
 INSTALL net/8021q/8021q.ko
 INSTALL net/batman-adv/batman-adv.ko
 INSTALL net/bluetooth/bnep/bnep.ko
 INSTALL net/bluetooth/bluetooth.ko
 INSTALL net/bluetooth/hidp/hidp.ko
 INSTALL net/bluetooth/rfcomm/rfcomm.ko
 INSTALL net/bridge/bridge.ko
 INSTALL net/bridge/netfilter/ebt_802_3.ko
 INSTALL net/bridge/netfilter/ebt_among.ko
 INSTALL net/bridge/netfilter/ebt_arp.ko
 INSTALL net/bridge/netfilter/ebt_dnat.ko
 INSTALL net/bridge/netfilter/ebt_arpreply.ko
 INSTALL net/bridge/netfilter/ebt_ip.ko
 INSTALL net/bridge/netfilter/ebt_ip6.ko
 INSTALL net/bridge/netfilter/ebt_limit.ko
 INSTALL net/bridge/netfilter/ebt_mark.ko
 INSTALL net/bridge/netfilter/ebt_log.ko
 INSTALL net/bridge/netfilter/ebt_mark_m.ko
 INSTALL net/bridge/netfilter/ebt_pkttype.ko
 INSTALL net/bridge/netfilter/ebt_nflog.ko
 INSTALL net/bridge/netfilter/ebt_redirect.ko
 INSTALL net/bridge/netfilter/ebt_snat.ko
 INSTALL net/bridge/netfilter/ebt_stp.ko
 INSTALL net/bridge/netfilter/ebt_ulog.ko
 INSTALL net/bridge/netfilter/ebtable_broute.ko
 INSTALL net/bridge/netfilter/ebt_vlan.ko
 INSTALL net/bridge/netfilter/ebtable_filter.ko
 INSTALL net/bridge/netfilter/ebtable_nat.ko
 INSTALL net/bridge/netfilter/ebtables.ko
 INSTALL net/core/pktgen.ko
 INSTALL net/ipv4/inet_diag.ko
 INSTALL net/ipv4/gre.ko
 INSTALL net/core/netprio_cgroup.ko
 INSTALL net/ipv4/netfilter/arp_tables.ko
 INSTALL net/ipv4/ip_gre.ko
 INSTALL net/ipv4/netfilter/arpt_mangle.ko
 INSTALL net/ipv4/netfilter/arptable_filter.ko
 INSTALL net/ipv4/netfilter/ip_tables.ko
 INSTALL net/ipv4/netfilter/ipt_CLUSTERIP.ko
 INSTALL net/ipv4/netfilter/ip_queue.ko
 INSTALL net/ipv4/netfilter/ipt_MASQUERADE.ko
 INSTALL net/ipv4/netfilter/ipt_NETMAP.ko
 INSTALL net/ipv4/netfilter/ipt_ECN.ko
 INSTALL net/ipv4/netfilter/ipt_REDIRECT.ko
 INSTALL net/ipv4/netfilter/ipt_REJECT.ko
 INSTALL net/ipv4/netfilter/ipt_ULOG.ko
 INSTALL net/ipv4/netfilter/ipt_ah.ko
 INSTALL net/ipv4/netfilter/iptable_filter.ko
 INSTALL net/ipv4/netfilter/iptable_mangle.ko
 INSTALL net/ipv4/netfilter/ipt_rpfilter.ko
 INSTALL net/ipv4/netfilter/iptable_nat.ko
 INSTALL net/ipv4/netfilter/iptable_raw.ko
 INSTALL net/ipv4/netfilter/nf_nat.ko
 INSTALL net/ipv4/netfilter/nf_conntrack_ipv4.ko
 INSTALL net/ipv4/netfilter/nf_defrag_ipv4.ko
 INSTALL net/ipv4/netfilter/nf_nat_amanda.ko
 INSTALL net/ipv4/netfilter/nf_nat_ftp.ko
 INSTALL net/ipv4/netfilter/nf_nat_irc.ko
 INSTALL net/ipv4/netfilter/nf_nat_h323.ko
 INSTALL net/ipv4/netfilter/nf_nat_proto_dccp.ko
 INSTALL net/ipv4/netfilter/nf_nat_pptp.ko
 INSTALL net/ipv4/netfilter/nf_nat_proto_gre.ko
 INSTALL net/ipv4/netfilter/nf_nat_proto_udplite.ko
 INSTALL net/ipv4/netfilter/nf_nat_proto_sctp.ko
 INSTALL net/ipv4/netfilter/nf_nat_sip.ko
 INSTALL net/ipv4/netfilter/nf_nat_tftp.ko
 INSTALL net/ipv4/netfilter/nf_nat_snmp_basic.ko
 INSTALL net/ipv4/tcp_diag.ko
 INSTALL net/ipv4/udp_diag.ko
 INSTALL net/ipv6/ah6.ko
 INSTALL net/ipv6/ip6_tunnel.ko
 INSTALL net/ipv6/ipcomp6.ko
 INSTALL net/ipv6/esp6.ko
 INSTALL net/ipv6/mip6.ko
 INSTALL net/ipv6/netfilter/ip6_queue.ko
 INSTALL net/ipv6/netfilter/ip6_tables.ko
 INSTALL net/ipv6/netfilter/ip6t_REJECT.ko
 INSTALL net/ipv6/netfilter/ip6t_frag.ko
 INSTALL net/ipv6/netfilter/ip6t_ah.ko
 INSTALL net/ipv6/netfilter/ip6t_eui64.ko
 INSTALL net/ipv6/netfilter/ip6t_hbh.ko
 INSTALL net/ipv6/netfilter/ip6t_ipv6header.ko
 INSTALL net/ipv6/netfilter/ip6t_rt.ko
 INSTALL net/ipv6/netfilter/ip6t_rpfilter.ko
 INSTALL net/ipv6/netfilter/ip6t_mh.ko
 INSTALL net/ipv6/netfilter/ip6table_filter.ko
 INSTALL net/ipv6/netfilter/ip6table_mangle.ko
 INSTALL net/ipv6/netfilter/ip6table_raw.ko
 INSTALL net/ipv6/netfilter/nf_conntrack_ipv6.ko
 INSTALL net/ipv6/sit.ko
 INSTALL net/ipv6/netfilter/nf_defrag_ipv6.ko
 INSTALL net/ipv6/tunnel6.ko
 INSTALL net/ipv6/xfrm6_mode_ro.ko
 INSTALL net/ipv6/xfrm6_mode_beet.ko
 INSTALL net/ipv6/xfrm6_mode_transport.ko
 INSTALL net/ipv6/xfrm6_mode_tunnel.ko
 INSTALL net/ipv6/xfrm6_tunnel.ko
 INSTALL net/irda/irda.ko
 INSTALL net/irda/ircomm/ircomm-tty.ko
 INSTALL net/irda/ircomm/ircomm.ko
 INSTALL net/irda/irlan/irlan.ko
 INSTALL net/irda/irnet/irnet.ko
 INSTALL net/l2tp/l2tp_core.ko
 INSTALL net/l2tp/l2tp_eth.ko
 INSTALL net/l2tp/l2tp_ip.ko
 INSTALL net/l2tp/l2tp_ppp.ko
 INSTALL net/l2tp/l2tp_netlink.ko
 INSTALL net/llc/llc.ko
 INSTALL net/mac80211/mac80211.ko
 INSTALL net/netfilter/ipset/ip_set.ko
 INSTALL net/netfilter/ipset/ip_set_bitmap_ip.ko
 INSTALL net/netfilter/ipset/ip_set_bitmap_port.ko
 INSTALL net/netfilter/ipset/ip_set_bitmap_ipmac.ko
 INSTALL net/netfilter/ipset/ip_set_hash_ip.ko
 INSTALL net/netfilter/ipset/ip_set_hash_ipport.ko
 INSTALL net/netfilter/ipset/ip_set_hash_ipportip.ko
 INSTALL net/netfilter/ipset/ip_set_hash_ipportnet.ko
 INSTALL net/netfilter/ipset/ip_set_hash_net.ko
 INSTALL net/netfilter/ipset/ip_set_hash_netiface.ko
 INSTALL net/netfilter/ipset/ip_set_list_set.ko
 INSTALL net/netfilter/ipset/ip_set_hash_netport.ko
 INSTALL net/netfilter/ipvs/ip_vs.ko
 INSTALL net/netfilter/ipvs/ip_vs_dh.ko
 INSTALL net/netfilter/ipvs/ip_vs_ftp.ko
 INSTALL net/netfilter/ipvs/ip_vs_lblc.ko
 INSTALL net/netfilter/ipvs/ip_vs_lblcr.ko
 INSTALL net/netfilter/ipvs/ip_vs_lc.ko
 INSTALL net/netfilter/ipvs/ip_vs_nq.ko
 INSTALL net/netfilter/ipvs/ip_vs_pe_sip.ko
 INSTALL net/netfilter/ipvs/ip_vs_rr.ko
 INSTALL net/netfilter/ipvs/ip_vs_sed.ko
 INSTALL net/netfilter/ipvs/ip_vs_sh.ko
 INSTALL net/netfilter/ipvs/ip_vs_wlc.ko
 INSTALL net/netfilter/nf_conntrack.ko
 INSTALL net/netfilter/nf_conntrack_amanda.ko
 INSTALL net/netfilter/ipvs/ip_vs_wrr.ko
 INSTALL net/netfilter/nf_conntrack_broadcast.ko
 INSTALL net/netfilter/nf_conntrack_ftp.ko
 INSTALL net/netfilter/nf_conntrack_h323.ko
 INSTALL net/netfilter/nf_conntrack_irc.ko
 INSTALL net/netfilter/nf_conntrack_netlink.ko
 INSTALL net/netfilter/nf_conntrack_pptp.ko
 INSTALL net/netfilter/nf_conntrack_netbios_ns.ko
 INSTALL net/netfilter/nf_conntrack_proto_dccp.ko
 INSTALL net/netfilter/nf_conntrack_proto_sctp.ko
 INSTALL net/netfilter/nf_conntrack_proto_udplite.ko
 INSTALL net/netfilter/nf_conntrack_proto_gre.ko
 INSTALL net/netfilter/nf_conntrack_sane.ko
 INSTALL net/netfilter/nf_conntrack_sip.ko
 INSTALL net/netfilter/nf_conntrack_tftp.ko
 INSTALL net/netfilter/nf_tproxy_core.ko
 INSTALL net/netfilter/nf_conntrack_snmp.ko
 INSTALL net/netfilter/nfnetlink_acct.ko
 INSTALL net/netfilter/nfnetlink_log.ko
 INSTALL net/netfilter/nfnetlink.ko
 INSTALL net/netfilter/nfnetlink_cttimeout.ko
 INSTALL net/netfilter/nfnetlink_queue.ko
 INSTALL net/netfilter/x_tables.ko
 INSTALL net/netfilter/xt_AUDIT.ko
 INSTALL net/netfilter/xt_CHECKSUM.ko
 INSTALL net/netfilter/xt_CLASSIFY.ko
 INSTALL net/netfilter/xt_CT.ko
 INSTALL net/netfilter/xt_DSCP.ko
 INSTALL net/netfilter/xt_CONNSECMARK.ko
 INSTALL net/netfilter/xt_HL.ko
 INSTALL net/netfilter/xt_IDLETIMER.ko
 INSTALL net/netfilter/xt_LED.ko
 INSTALL net/netfilter/xt_LOG.ko
 INSTALL net/netfilter/xt_NFLOG.ko
 INSTALL net/netfilter/xt_NFQUEUE.ko
 INSTALL net/netfilter/xt_NOTRACK.ko
 INSTALL net/netfilter/xt_RATEEST.ko
 INSTALL net/netfilter/xt_SECMARK.ko
 INSTALL net/netfilter/xt_TCPMSS.ko
 INSTALL net/netfilter/xt_TCPOPTSTRIP.ko
 INSTALL net/netfilter/xt_TEE.ko
 INSTALL net/netfilter/xt_TPROXY.ko
 INSTALL net/netfilter/xt_TRACE.ko
 INSTALL net/netfilter/xt_addrtype.ko
 INSTALL net/netfilter/xt_cluster.ko
 INSTALL net/netfilter/xt_comment.ko
 INSTALL net/netfilter/xt_connbytes.ko
 INSTALL net/netfilter/xt_connlimit.ko
 INSTALL net/netfilter/xt_connmark.ko
 INSTALL net/netfilter/xt_cpu.ko
 INSTALL net/netfilter/xt_conntrack.ko
 INSTALL net/netfilter/xt_dccp.ko
 INSTALL net/netfilter/xt_ecn.ko
 INSTALL net/netfilter/xt_devgroup.ko
 INSTALL net/netfilter/xt_dscp.ko
 INSTALL net/netfilter/xt_esp.ko
 INSTALL net/netfilter/xt_hashlimit.ko
 INSTALL net/netfilter/xt_helper.ko
 INSTALL net/netfilter/xt_hl.ko
 INSTALL net/netfilter/xt_iprange.ko
 INSTALL net/netfilter/xt_ipvs.ko
 INSTALL net/netfilter/xt_limit.ko
 INSTALL net/netfilter/xt_mac.ko
 INSTALL net/netfilter/xt_length.ko
 INSTALL net/netfilter/xt_mark.ko
 INSTALL net/netfilter/xt_multiport.ko
 INSTALL net/netfilter/xt_nfacct.ko
 INSTALL net/netfilter/xt_osf.ko
 INSTALL net/netfilter/xt_owner.ko
 INSTALL net/netfilter/xt_physdev.ko
 INSTALL net/netfilter/xt_pkttype.ko
 INSTALL net/netfilter/xt_policy.ko
 INSTALL net/netfilter/xt_quota.ko
 INSTALL net/netfilter/xt_quota2.ko
 INSTALL net/netfilter/xt_rateest.ko
 INSTALL net/netfilter/xt_realm.ko
 INSTALL net/netfilter/xt_recent.ko
 INSTALL net/netfilter/xt_sctp.ko
 INSTALL net/netfilter/xt_socket.ko
 INSTALL net/netfilter/xt_set.ko
 INSTALL net/netfilter/xt_state.ko
 INSTALL net/netfilter/xt_statistic.ko
 INSTALL net/netfilter/xt_tcpmss.ko
 INSTALL net/netfilter/xt_string.ko
 INSTALL net/netfilter/xt_tcpudp.ko
 INSTALL net/netfilter/xt_time.ko
 INSTALL net/netfilter/xt_u32.ko
 INSTALL net/openvswitch/openvswitch.ko
 INSTALL net/wireless/lib80211.ko
 INSTALL net/wireless/lib80211_crypt_ccmp.ko
 INSTALL net/wireless/lib80211_crypt_tkip.ko
 INSTALL sound/core/snd-hwdep.ko
 INSTALL net/wireless/lib80211_crypt_wep.ko
 INSTALL sound/soc/codecs/snd-soc-wl1273.ko
 INSTALL sound/core/snd-rawmidi.ko
 INSTALL sound/usb/6fire/snd-usb-6fire.ko
 INSTALL sound/usb/caiaq/snd-usb-caiaq.ko
 INSTALL sound/usb/misc/snd-ua101.ko
 INSTALL sound/usb/snd-usb-audio.ko
 INSTALL sound/usb/snd-usbmidi-lib.ko
 MKDIR   /home/leyiwo/sunxi-tools/linux-sdk-card/output/ct/ct-debian-server/card0-part2
/lib/firmware/emi26/
make[2]: *** No rule to make target ’/home/leyiwo/sunxi-tools/linux-sdk-card/output/ct/c
t-debian-server/card0-part2/lib/firmware/./’, needed by ’/home/leyiwo/sunxi-tools/linux-
sdk-card/output/ct/ct-debian-server/card0-part2/lib/firmware/ti_3410.fw’。 停止。
make[2]: *** 正在等待未完成的任务….
 MKDIR   /home/leyiwo/sunxi-tools/linux-sdk-card/output/ct/ct-debian-server/card0-part2
/lib/firmware/kaweth/
 MKDIR   /home/leyiwo/sunxi-tools/linux-sdk-card/output/ct/ct-debian-server/card0-part2
/lib/firmware/emi62/
/home/leyiwo/sunxi-tools/linux-sdk-card/linux-sunxi/Makefile:1135: recipe for target ’_m
odinst_post’ failed
make[1]: *** [_modinst_post] Error 2
Makefile:130: recipe for target ’sub-make’ failed
make: *** [sub-make] Error 2
make: Leaving directory ’/home/leyiwo/sunxi-tools/linux-sdk-card/linux-sunxi’


————————————————————–

       * Building Micro-sd Card Image Step:
       0.Insert Micro-sd Card into host PC
       !!!!! WARNNING !!!!!
       The below steps will format your Micro-sd Card
       Please make sure your Micro-sd Card label
       $ sudo fdisk -l
       $ sudo umount /dev/sdx

       1.Micro-sd Card Image packing:
       (1)$ cb_build_card_image
       (2)$ cb_part_install_tfcard nand/tfx2/tsd sdx pack
       (3)$ cb_install_tfcard nand/tfx2/tsd sdx [pack]

       2.Micro-sd Card flash TSD:
       (1)$ cb_build_flash_card_image
       (2)$ cb_part_install_flash_card tsd sdx
       (3)$ cb_install_flash_card tsd sdx [pack]


       * Explanation of parameters
       – nand:   Nand flash storage version for cbs
       – tfx2:   Cubieboard2-dualcard version
       – tsd:    Tsd flash storage version for cbs
       – sdx:    Micro-sd Card label on host PC
       – pack:   Calculation Micro-sd Card  partition size
       – [pack]: Optional parameters,backup and release image


       * Building example for nand version Micro-sd Card Image
       $ cb_build_card_image
       $ cb_part_install_tfcard nand sdc pack
       $ cb_install_tfcard nand sdc

稍后重新从头到尾试一遍

然后依次输入以下命令编译:
编译 tf 卡刷写 nand/tsd flash 的启动卡
$cb_build_flash_card_image
编译内核和打包文件系统
$cb_install_flash_card nand sdb pack
将 U-boot、内核镜像和文件系统放入格式化后的 tf 卡中,所带的参数和前面编译卡固件一样,不过 CB2
双卡版是不支持这种编译模式,因为双卡版没有板载 flash.
5.4 获得固件
1)前面的几个步骤之后,您的 TF 卡已经是一张启动卡了,可以直接启动或者刷写 flash
2)如果您在编译的时候加了[pack], 在 output 对应的产品目录下可以找到备份出来的卡固件
3)pack 出来的 2 个固件,可以使用 dd 命令或者 windows 平台下的 win32diskimager 工具制作启动

6.编译问题解决
1)如果编译出现问题,请检查是否缺少工具包,却什么就 apt-get 装什么
2)两种编译模式切换前,请清理一下编译环境:
$ cd linux-sdk-card
$ cd linux-sunxi
$ make mrproper
$ cd ..
$ sudo rm -rf output build

喜欢 (0)
[🍬谢谢你请我吃糖果🍬🍬~]
分享 (0)
关于作者:
少将,关注Web全栈开发、项目管理,持续不断的学习、努力成为一个更棒的开发,做最好的自己,让世界因你不同。
发表我的评论
取消评论

表情 贴图 加粗 删除线 居中 斜体 签到

Hi,您需要填写昵称和邮箱!

  • 昵称 (必填)
  • 邮箱 (必填)
  • 网址
(1)个小伙伴在吐槽
  1. leyiwo@leyiwo:~/sunxi-tools/linux-sdk-card1$ cb_install_tfcard nand sdc<br />/home/leyiwo/sunxi-tools/linux-sdk-card1/binaries/u-boot-a20/u-boot-sunxi-with-spl-ct-20131102.bin<br />&quot;/home/leyiwo/sunxi-tools/linux-sdk-card1/build/ct/ct-debian-server/linux/arch/arm/boot/uImage&quot; -&gt; &quot;/home/leyiwo/sunxi-tools/linux-sdk-card1/output/ct/ct-debian-server/card0-part1/uImage&quot;<br />&quot;/home/leyiwo/sunxi-tools/linux-sdk-card1/products/ct/ct-debian-server/configs/nand/uEnv-mmc.txt&quot; -&gt; &quot;/home/leyiwo/sunxi-tools/linux-sdk-card1/output/ct/ct-debian-server/card0-part1/uEnv.txt&quot;<br />Check ok: /dev/sdc<br />记录了254+1 的读入<br />记录了254+1 的写出<br />260260字节(260 kB)已复制,0.111734 秒,2.3 MB/秒<br />Build successfully<br />leyiwo@leyiwo:~/sunxi-tools/linux-sdk-card1$
    故事、自己写2015-06-23 12:41 回复 未知操作系统 | 未知浏览器
